Features:
  Certified by UL®, ETL and ANSI/TIA/EIA-568B.2-1 for Category 6regulations


Best for Internet, Intranet, Broadband Multimedia, CAD, CAM, Medical, Financial, Aviation or Voice-over IP (VoIP) environments


No. of Pairs
Standard Jacket Colors
Insulation Thickness(mm/inch)
Weight/Length
4
Grey , Blue
5.4/0.21

Reel Box:
11.8 kg/ 304.8 m
( 25.9 lb./ 1,000 ft.)


Electrical Specifications
Impedance: 100 Ω ± 15 ﹪
Maximum mutual capacitance:17.1 nf/ 1,000 ft.
Maximum DC resistance:28.6 Ω / 1,000 ft.
Maximum DC resistance unbalance: 5%
Maximum capacitance unbalance (pair to ground):330pf/ 100m.
Maximum Propagation delay skew:45ns/ 100m.
Normal velocity of propagation: 62% at 100MHZ;

Attenuation to Crosstalk ratio: at 100MHZ;
typical 26.5dB; at 155MHZ; typical 18.4dB;
at 250MHZ; typical 7.5dB


Category 6 UTP Cable (Solid)
Part Number
Description
Std. Pkg. Qty.

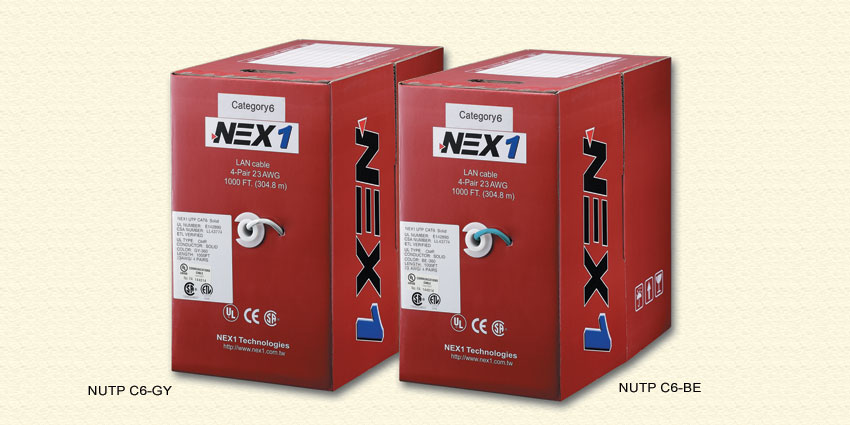

NUTP-C6-GY

Category 6 unshielded Twisted pair (UTP) cable, Grey Color.

 1(Reel Box; 11.8 kg/ 304.8m)
NUTP-C6-BE

Category 6 unshielded Twisted pair (UTP) cable, Blue Color.

1(Reel Box; 11.8 kg/304.8m)

Color options: Grey(GY), Blue(BE),Yellow(YW),Pink(PK)

UTP Cable – Category 6 (Solid)







Last Update: October 31, 2003
