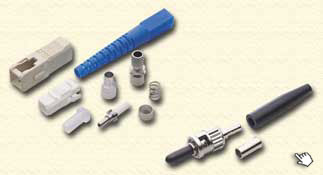

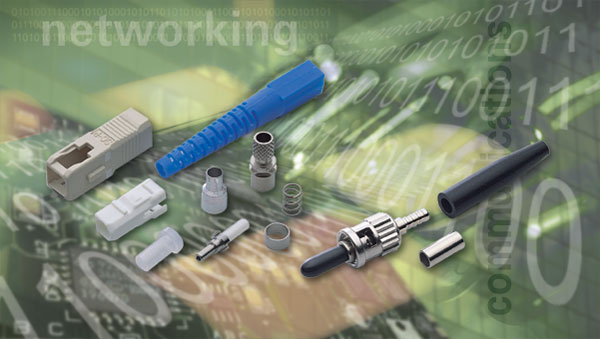

NEX1's ST connector uses a bayonet locking system; it is the most common connector. The ceramic ferrule of the ST connector ensures highest performance.
NEX1's SC connector features a molded body and a push-pull locking system. Its design is perfect for Gigabit Ethernet 1,000Base-SX and 1,000Base-LX.
 Features:
- Compliant with TIA/EIA-568 performance requirements
- Terminable with commonly available tools
| Physical Specifications |
- Fiber Cable Type: 3.0 mm jacketed or 900 µm tight-buffered
- Fiber Compatibility: 62.5/125 µm and 50/125 µm multimode; 9/125 µm single-mode
|
| Electrical Specifications |
- Insertion Loss: < 0.34 dB typical; < 0.15 dB single mode;
< 0.3 dB multimode
- Return Loss: -50 dB single-mode
|
ST Multimode Connectors
| Part Number |
Description |
Std.Pkg.Qty. |
| NSTMMC |
ST Multimode Connector: includes connector body/ ferrule assembly, crimp sleeve, one boot for 3 mm jacketed fiber and one dust cap. |
1 |
ST Single-Mode Connectors
| Part Number |
Description |
Std.Pkg.Qty. |
| NSTSMC |
ST Single-Mode Connector: includes connector body/ ferrule assembly, crimp sleeve, one boot for 3 mm jacketed fiber and one dust cap. |
1 |
SC Multimode Connectors
| Part Number |
Description |
Std.Pkg.Qty. |
| NSCMMC |
SC Multimode connector:includes connector housing, inner housing, ferrule assembly, crimp sleeve, spring, one boot for 3 mm jacketed fiber and one dust cap. |
1 |
SC Single-Mode Connectors
| Part Number |
Description |
Std.Pkg.Qty. |
| NSCSMC |
SC Single-Mode Connector:includes connector housing, inner housing, ferrule assembly, crimp sleeve, spring, one boot for 3 mm jacketed fiber and one dust cap. |
1 |

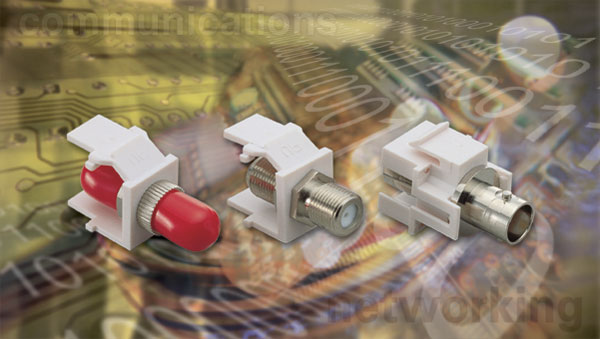

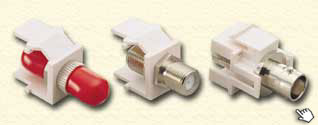

Adaptor
| Part Number |
Description |
Std.Pkg.Qty. |
| NSTA |
Adaptor for ST typed connectors |
1 |
| NTVFA |
Adaptor for F typed coaxial connectors (TV interface) |
1 |
| NBNCA |
Adaptor for 10Base-2 BNC typed connectors 1 |
1 |
