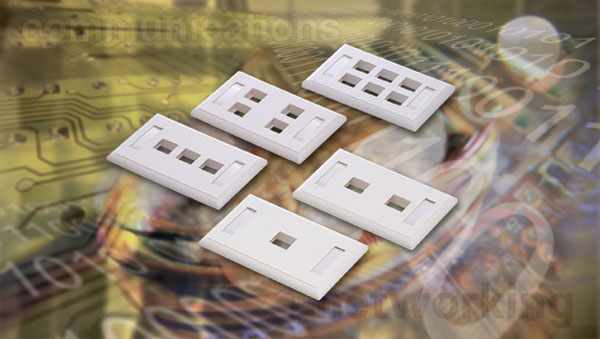

You get plenty of room to grow with these wall plates designed for any standard inserts. The snap-in design of this faceplate enables moves, adds, or changes to be done in a snap.
 Features:
- Configured for high-density installations
- Comes in models to accommodate 1, 2, 3, 4, 6 inserts
- Comes with mounting screws and two outlet ID labels
- Keystone jacks can be snapped in and out individually
- Broad range of solutions
- Complete system for flush (in-wall), modular furniture
- Modular design for easy changes or additions of a variety of media to expand in the future
| Physical Specifications |
- Apply UL-94V-0 high-impact, fire-retardant ABS material
- Compatible with BNC, ST, SC, Keystone, TV, andblank inserts for future expansion
|
Wall Plate
| Part Number |
Description |
Std.Pkg.Qty. |
| NWP-1 |
Single-gang wall plate holds 1 single insert |
1 |
| NWP-2 |
Single-gang wall plate holds 2 single inserts |
1 |
| NWP-3 |
Single-gang wall plate holds 3 single inserts |
1 |
| NWP-4 |
Double-gang wall plate holds 4 single inserts |
1 |
| NWP-6 |
Double-gang wall plate holds 6 single inserts |
1 |
| Dimensions: |
Length |
Width |
Depth |
| |
114 mm |
70 mm |
6.6 mm |
