Ethernet概論

  • 起源
  • 限制
  • OSI 的連結
  • 種類

Ethernet

  • Designed by Digital Equipment Corporation, Intel Corporation and Xerox Corporation.
  • Later became an international standard with the IEEE 802.3 specification.

佈線選擇

  • Four common cables used:
    1. 10BASE5 (Thicknet)
    2. 10BASE2 (Thinnet)
    3. 10BASE-T (UTP)
    4. 10BASE-F (Fiber)

Cable 最大長度限制

AUI Cable*
50 meters
10Base5
500 meters
10Base2
185 meters
10BaseT
100 meters
10BaseF
1000 meters

*(Attachment Unit Interface) Ethernet Drop Cable

10BASE5 (Thicknet)

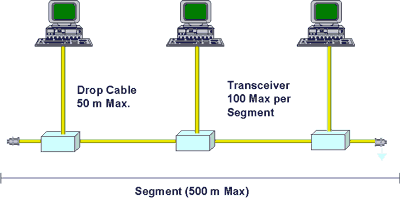

10BASE5 Specifications

  • Data Transfer Rate 10 Mbps
  • Maximum Segment Length 500 m (1640 ft)
  • Maximum Network Length 2,500 m (8,200 ft)
  • Maximum Drop Cable Length 50 m
  • Maximum Node Separation 5 segments (4 repeaters)
  • Maximum Taps/Segment 100
  • Minimum Distance 2.5 m (8 ft)
    between taps.

10BASE2 (Thinnet)

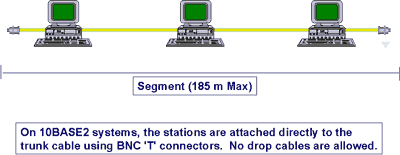

10BASE2 Specifications

  • Data Transfer Rate 10 Mbps
  • Maximum Segment Length 185 m (600 ft)
  • Maximum Network Length 925 m (3,035 ft)
  • Maximum Node Separation 5 segments (4 repeaters)
  • Maximum Taps/Segment 30
  • Minimum Distance 0.5 m
    between taps.

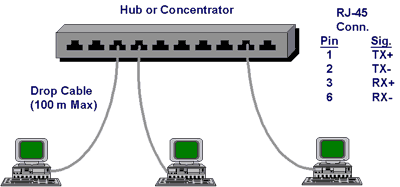

10BASE-T (UTP)

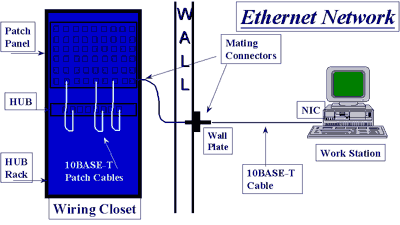

真實世界佈線連接
