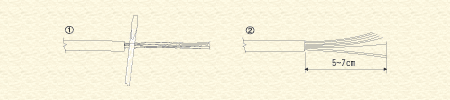

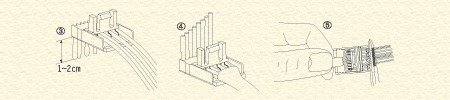

Insert cables into guided tray based on the planned wire scheme. |
|
Slightly bent the cables up to prevent from falling back and pull cables up all the way up until the edge of the stripped cable stops at the insertion point. |
|
| |
 |
|
Cut the exposed part |
|
Securely tighten the cover by using fingers or applying the prier |
|
| |
|
| |
|
| |

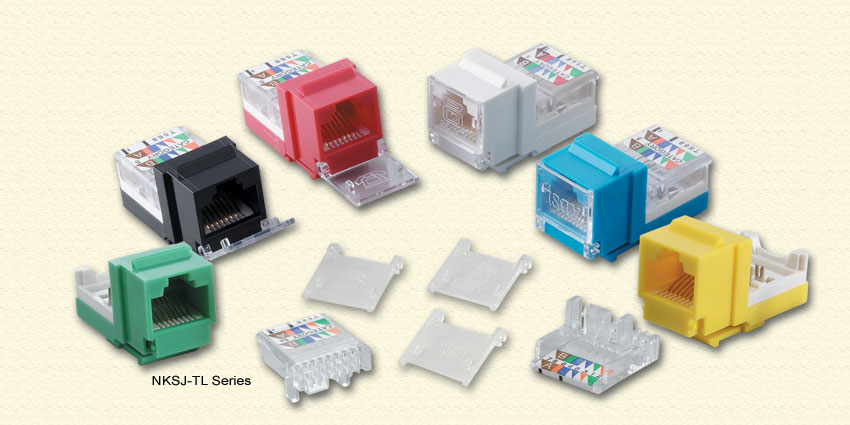

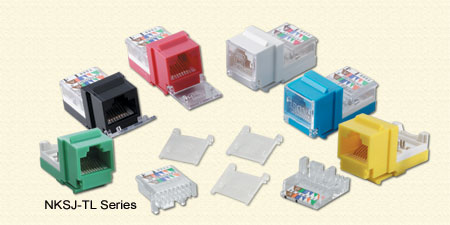

 Tool-less Category 5e/6 Keystone Jack |
| |
Part Number |
Description |
Std. Pkg. Qty. |
| NKSJ-TL-C5e |
Category 5e tool-less typed 8-position, 8-wire Keystone jack. Termination cap is color for T 568A and T568B wiring schemes |
1 |
| NKSJ-TL-C6 |
Category 6 tool-less typed 8-position, 8-wire Keystone jack. Termination cap is color for T 568A and T568B wiring schemes |
1 |
|
| |
Color options: |
 |
White(WE), Red(RD), Blue(BE), Black(BK), Yellow(YW), Green(GN) |
|
| |
|
| |
| |
產品特徵： |
| |
 |
資訊插座專用工具 |
| |
|
壓接免工具資訊插座省時省力 |
| |
|
專用工具、易握好壓 |
| |
|
壓接紮實：確保接觸端子與線緊密結合 |
| |
| |
Features: |
| |
|
Insures easier installation |
| |
|
Eliminates need for slip lock pliers |
| |
|
Insures conductors are fully terminated |
|
| |

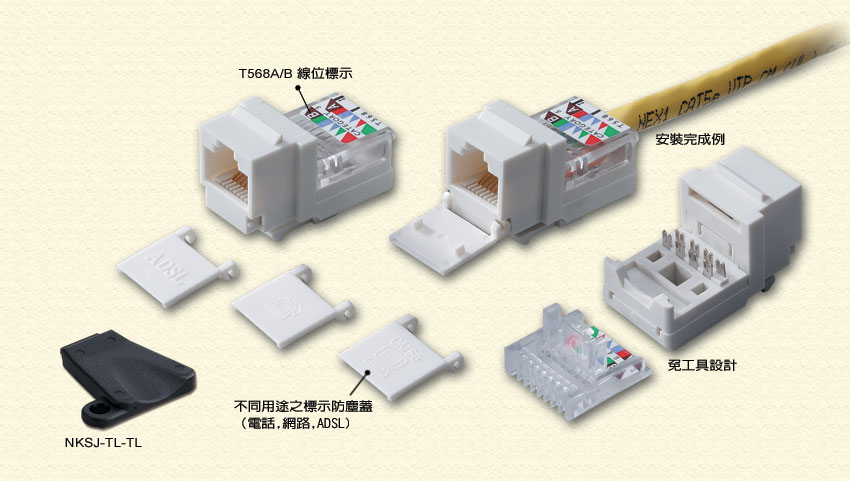

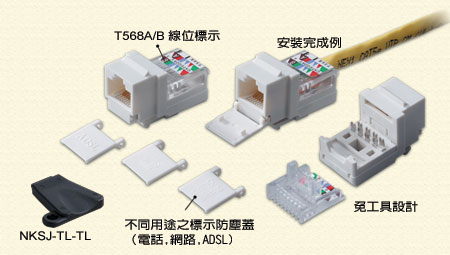

| Termination Tool |
Part Number |
Description |
Std. Pkg. Qty. |
| NKSJ-TL-TL |
Termination tool for tool-less typed Keystone Jack and Patch Panels |
1 |
|
| |
